Device connection screen

Device connection screen

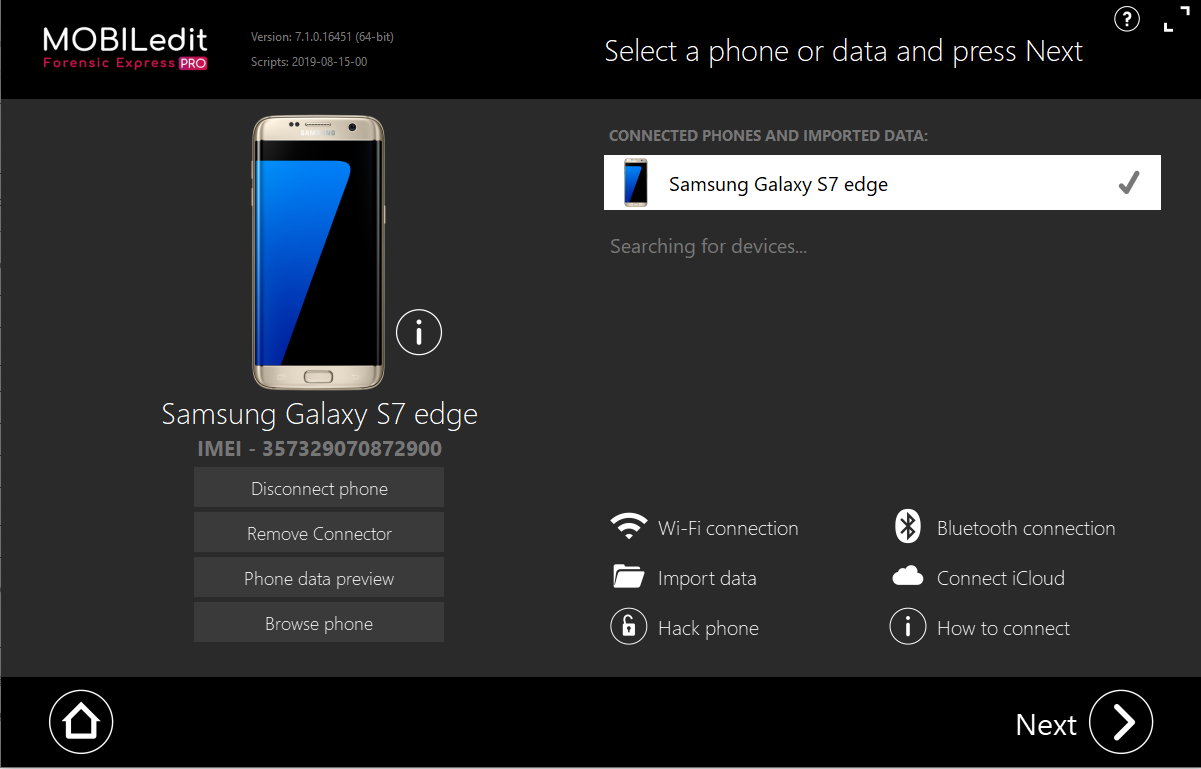

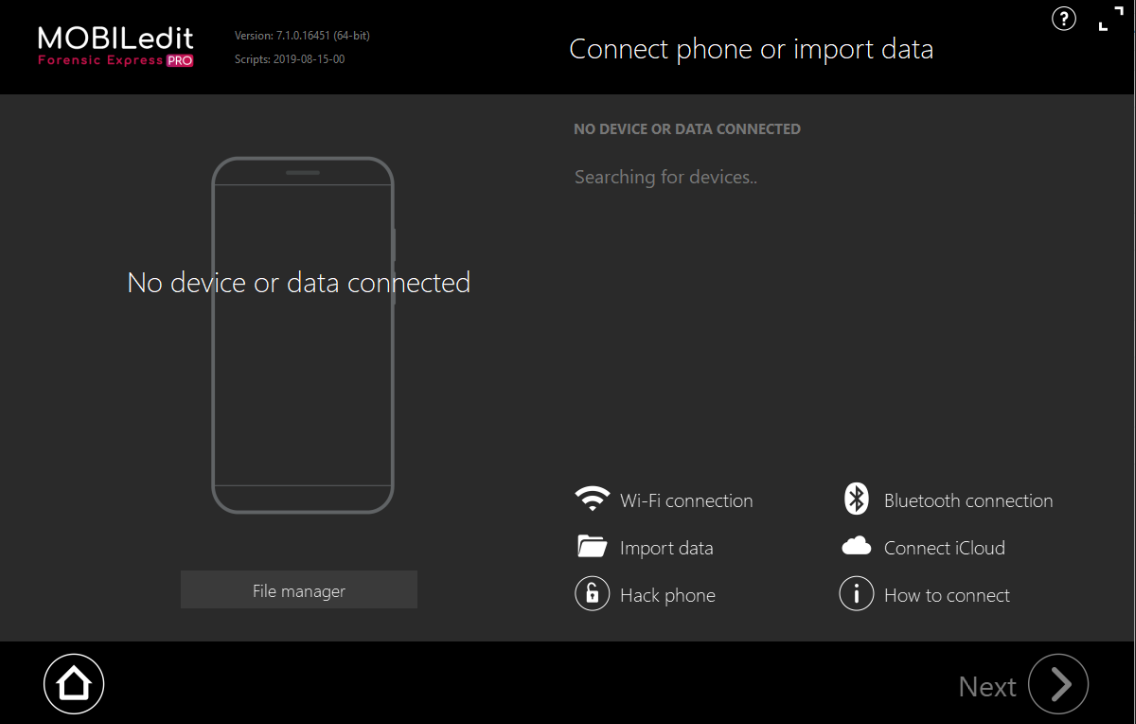

This screen displays the connected devices. If you do not know how to connect a device you can press the 'How to connect phone' button to view connection instructions.





Once the device will be connected successfully, MOBILedit comes up with the automatic phone detection feature which makes the Software easy to use.

If the device still does not appear to be connected, it is suggested to check the USB connection and install the preferred phone drivers available on MOBILedit website.

iOS
While connecting iOS device, there will be pop-up message on the screen, select "Trust" and iOS device will appear connected on the MOBILedit Forensics program home page

Android:
While connecting, you will see the USB debugging pop-up message on the screen, select "Allow" and device will appear connected on the MOBILedit Forensics program home page.

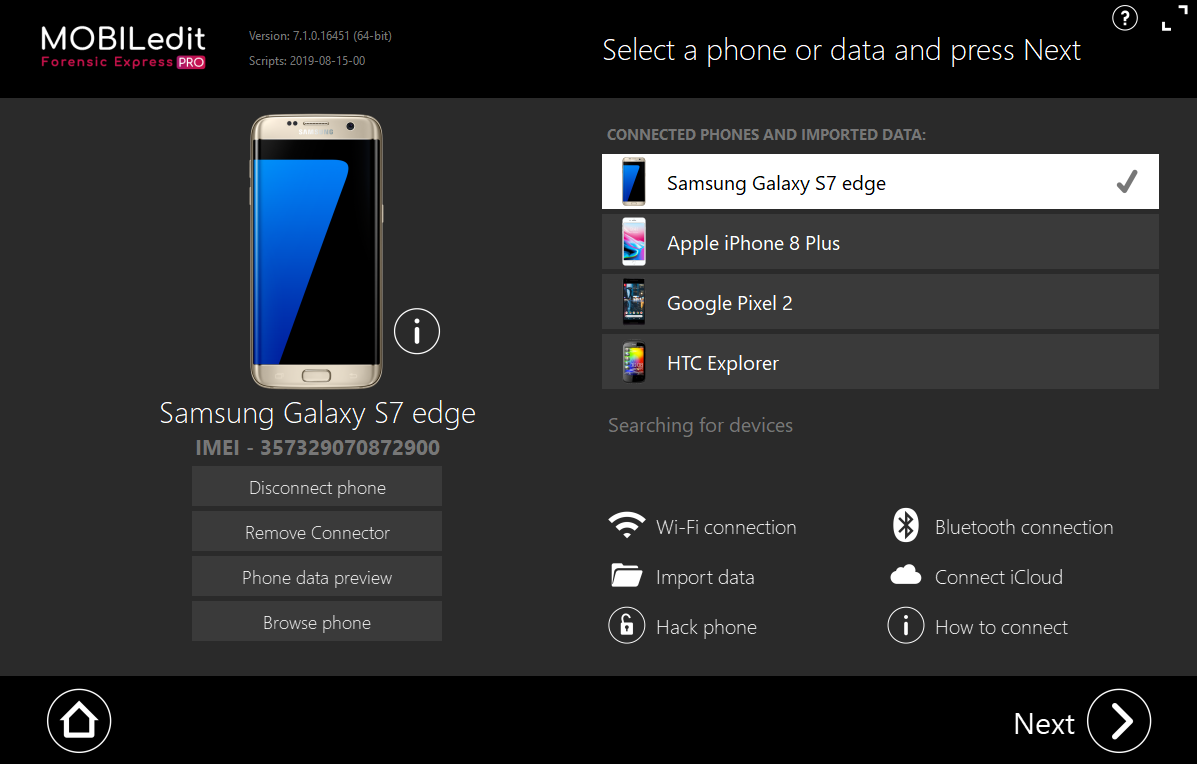

You can also connect multiple devices to MOBILedit Forensic Express.

You don't have to wait for the device extraction to get completed and you can easily start with another extraction at the same time by just clicking over the connection page.
