How to flash TWRP on Samsung devices (ODIN method)

How to flash TWRP on Samsung devices (ODIN method)

Requirements:
  1. Your Samsung device
  2. All the correct drivers for your phone installed
  3. Computer with Windows 8 or newer
  4. Odin 3.09 or newer
  5. ADB installed on your PC
  6. TWRP image file for your device in TAR archive (download from here)
Steps:

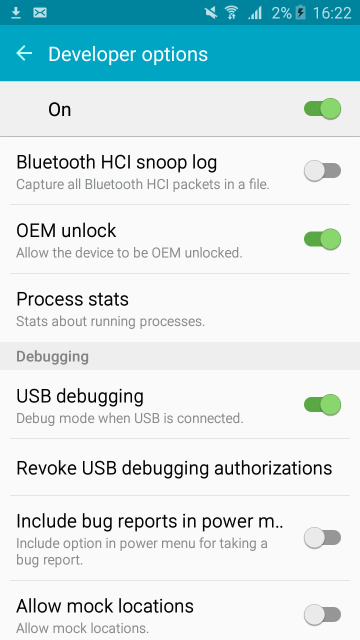

  1. Make sure that you have enabled OEM unlock (if available) as seen on the screenshot below.


  2. Start Odin and restart your phone into "Download mode" by turning it off and holding the 'volume down', 'home' and 'power' buttons for a few seconds.

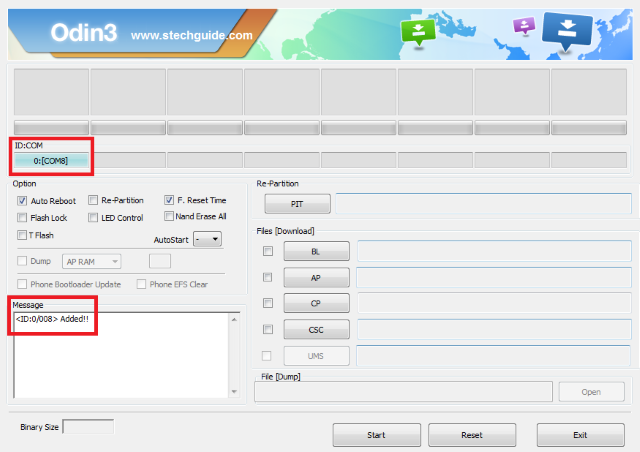

  3. Connect your phone to the PC via USB, Odin should recognize a new device:

  4. Make sure that the "Re-Partition" option in Odin is disabled
  5. Click on the "AP" button in Odin and choose your TWRP image (should end with ".img.tar")

  6. Click on "Start" button in Odin and wait for the flashing process to finish

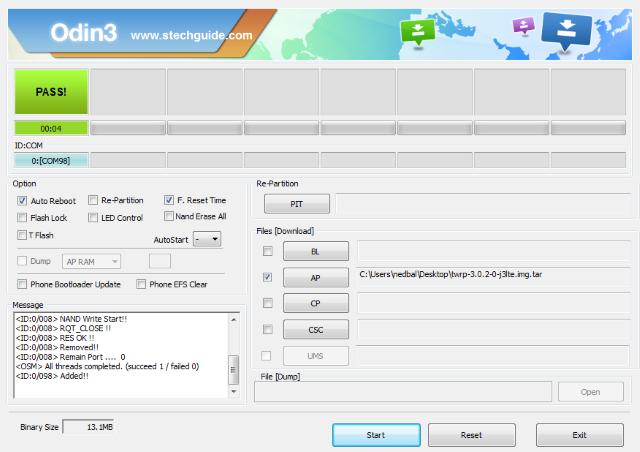

  7. Once the text "PASS!" appears in Odin, your device should automatically reboot. You can then boot into your new recovery straight from Android using "adb reboot recovery" command.

If you're a Linux user, please use Heimdall instead of Odin
You can also try to use our in-built flashing tool for TWRP, more information is available here
WARNING: Flashing custom recoveries may void your warranty and trip the Knox Warranty void flag
